Working principle and equipment structure:

1, working principle:

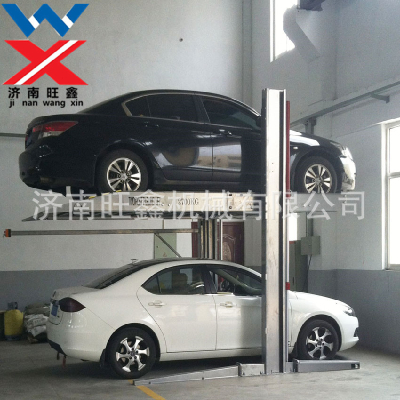

The equipment transmission system adopts hydraulic transmission, hydraulic pump output pressure oil driven hydraulic cylinder drives the car carrying up or down, access to vehicles to achieve the objective. Ground parking, the car carrying up to be in place, you can enter or exit the vehicle.

2, equipment structure:

The parking equipment is composed of steel structure, transmission system, car, safety protection device, electric control and operating system etc..

(1): steel structure is mainly composed of left and right bracket, left leg, they were made of C steel and welding. Bracket, brace, jib, drum, for most of the load supporting board. The hydraulic cylinder is installed on the bracket and the diagonal brace.

(2) board: the part for the parking of vehicles, and ascend to the upper berth, divided into two parts before and after. Mainly by the left and right borders, beams, after the board and the corrugated plate, etc..

(3) transmission system: this part uses the hydraulic pump, the hydraulic cylinder, the high pressure oil pipe and so on. The hydraulic pump with high pressure oil driven hydraulic cylinder drives the car carrying up or down.

(4) electrical control system: electrical control system is mainly composed of control box, operation box, limit switch and motor components.

Safety devices and safety measures:

1, electrical control system safety devices and safety measures:

(1) the protective earthing measures are adopted in the system.

(2) the main isolation switch is installed, the operating system uses AC220V.

The emergency stop button is arranged on the right side of the button box (3). When an emergency occurs, press the emergency stop button to stop the operation immediately.

2, equipment safety devices and safety measures:

(1) the warning device in operation: when the equipment is running, the green warning light is shining, warning pedestrians and vehicles must not enter the garage to prevent accidents.

(2) the vehicle parking position device: the parking spaces on the ground with a car retarder, can prevent the driver is not in place.

3, the mobile part of the safety device and safety measures:

(1) the lifting device safety measures - limit device: carries up to a certain height, limiting touch block hit limit switch board to stop running, falling prevention hook and handle automatic locking, so as to achieve the purpose of double protection.

Five, operation and operation:

1, operation box on the left side: "authorized" selection switch limits the user's authority to operate as "rising" and "falling" and "off", the middle is the power indicator, "emergency stop" red mushroom emergency stop button, the button can be used for emergency stop rotation reduction, non normal condition.

2, operation instructions:

(1) switch on the power supply of the equipment, start the switch with the key, and operate the power indicator light on the box Ying Liang.

(2) vehicle operation: first remove the bottom of the vehicle, move the handle lifting equipment falling prevention hook, the operation box key switch to the "down" position, take the car to complete the operation.

(3) parking operation: first remove the bottom of the vehicle, move the handle lifting equipment falling prevention hook, operation box key switch to the "down" position, the car completely to the ground, the car carrying vehicles parked in place, on the operation box key switch to "up" position. Sweep up stop, falling prevention hook will automatically lock the carrying board, with protection against falling, complete vehicle operation.
